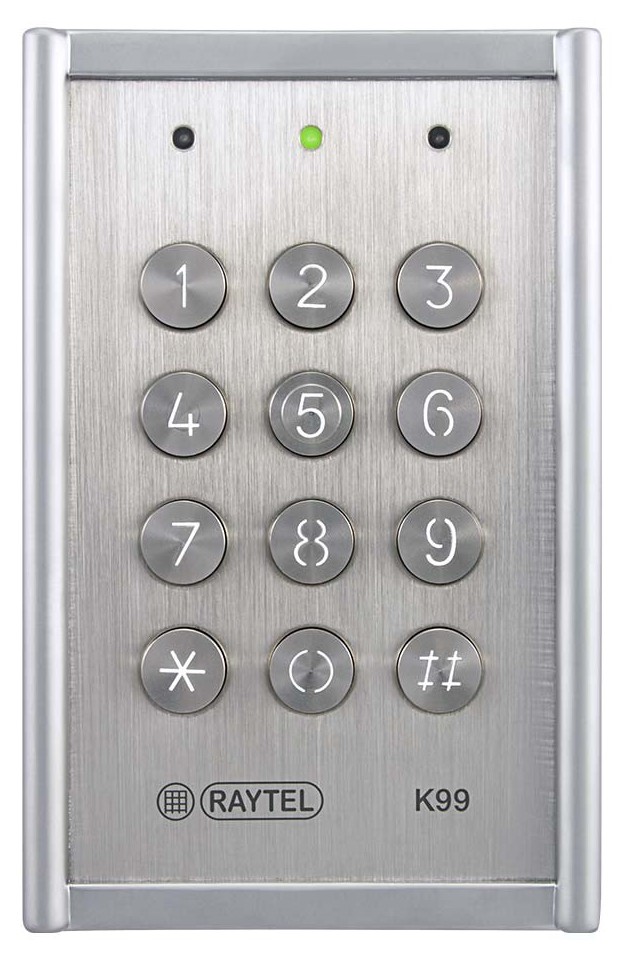

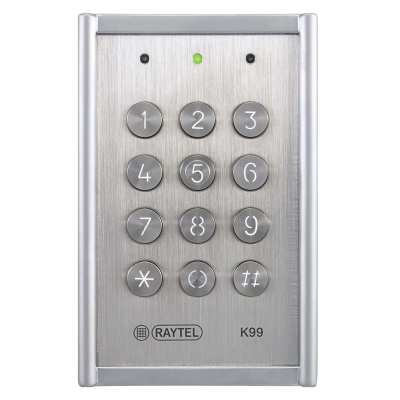

K99F Flush Mount Digital Keypad
Quickcode: 9923
Payment Methods
You can place an order for this product, and typically, it will take 3-4 working days to be ready for dispatch.
Our sales team will provide you with a confirmed dispatch date shortly after receiving the order.
Flush Mount Digital Keypad Incorporates the K99i Keypad module
- BS316 Stainless Steel Plate Illuminated buttons with ‘Tactile’ 5 Buttons
- 12-24V AC/DC Supply
- 99 user codes in 2 groups
- Independent Lock and Auxilliary outputs-
- Timed or latching.
- Egress/Request to Exit Input
- Door Monitoring function
- Optical tamper sensor
- Door forced open indication (Alarm)
The K99F flush mount digital keypad incorporates the K99I keypad module mounted on a 2mm BS316 Stainless Steel face plate.
The K99F will mount on a standard flush double socket outlet back box (purchased separately)
The keypad offers the following:
Two independent output relays are available, both can be timed or latching outputs.
Relay 1 is the default lock output relay operated via programmed user codes (codes 1-19)
Relay 2 is an auxiliary relay which can be configured as an additional output operated by a second set of user codes (codes 20-99) or it can be used for a number of additional functions such as an alarm output or a Doorbell output.
User codes can be 4 to 8 digits (defined by the master code length), all codes must be the same length.
The Master access code for the keypad can be changed to suit installer requirements.
K99F Features
Indication LED’s for Status, Lock, Auxilliary
Outputs Lock Output C, N/O, N/C Form C
Aux Output C, N/O, N/C Form C
Both rated 24V DC 3A Max
Tamper output (Alarm)
Users 99 in 2 User Groups, 4-8 Digits
Programming Via Keypad and jumpers
Memory Non volatile
Connections Screw terminals
Plate Dimensions 145mm x 86mm x 2mm
Fixing centres 120mm
Requires Flush Box FB146 (purchased separately)
or
2 gang Back box 75 x 135 x 35mm
