Raytel K99 Digital Keypad

Quickcode: 9922

 Available

£109.90 (£131.88 inc VAT)

3-4 working days

Manufacturer: Raytel
Part number: K99

Payment Methods

Payment Methods

You can place an order for this product, and typically, it will take 3-4 working days to be ready for dispatch.

Our sales team will provide you with a confirmed dispatch date shortly after receiving the order.

Raytel

K99 - Vandal resistant Surface mount external Keypad (IP65)

  • Brushed Stainless Steel / Zinc Alloy housing
  • Illuminated buttons with ‘Tactile’ 5 buttons
  • 12-24V AC/DC Supply
  • 99 user codes in 2 groups
  • Independent Lock and Auxilliary outputs-
  • Timed or latching.
  • Egress/Request to Exit Input
  • Door Monitoring function
  • Tamper output (Alarm)
  • Door forced open indication (Alarm)

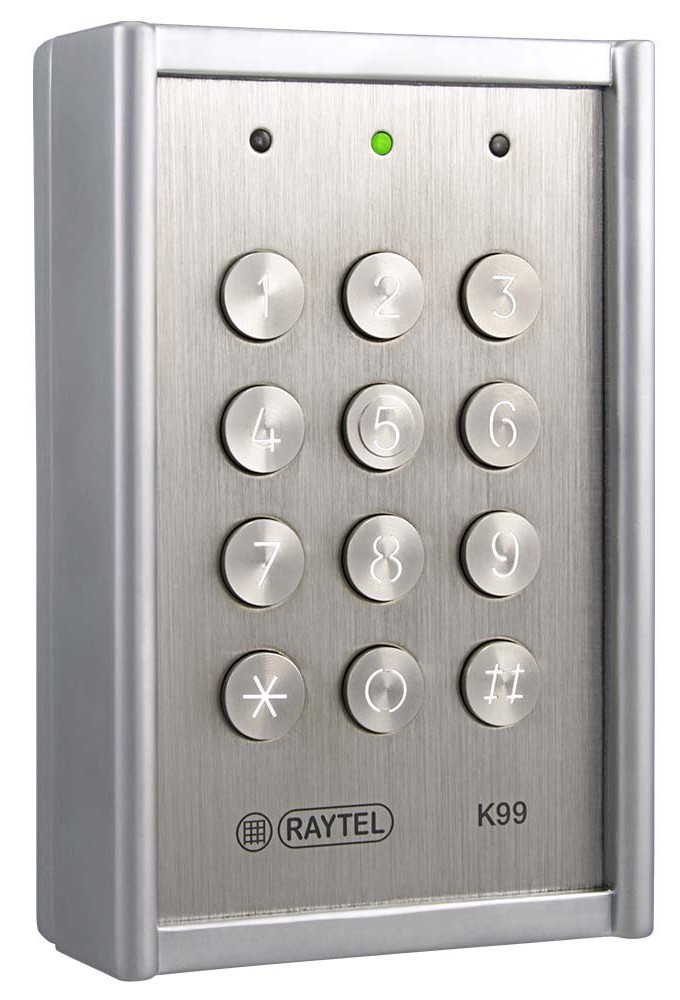

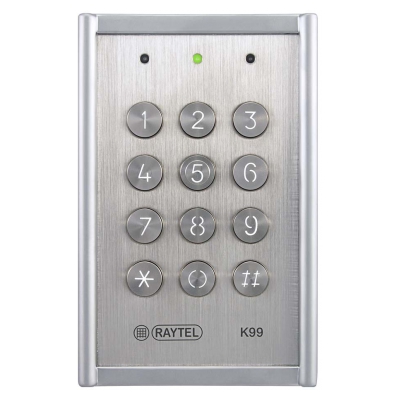

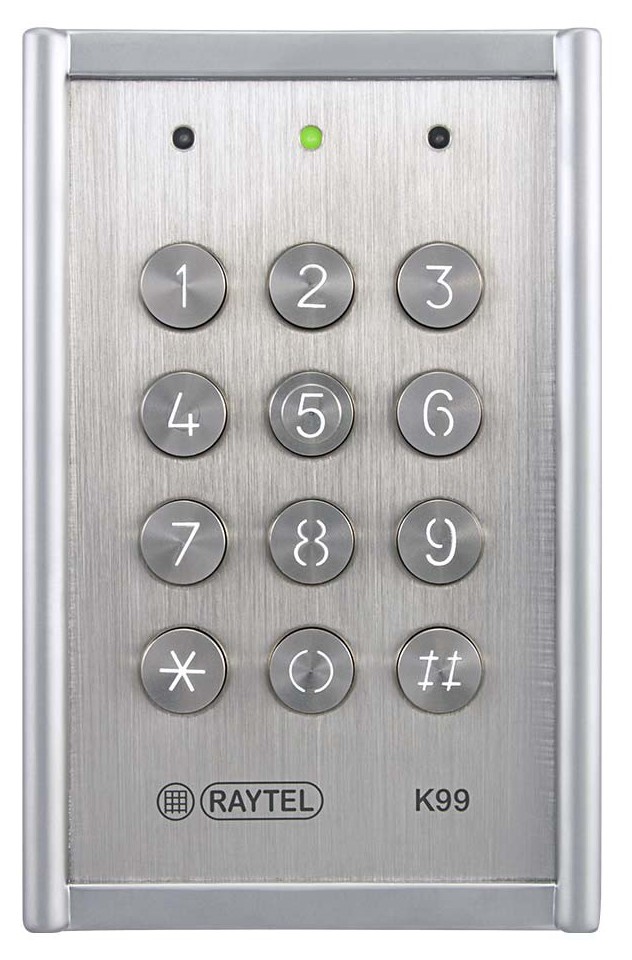

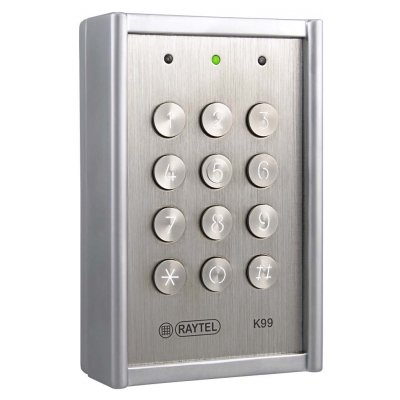

The K99 is an external surface Stainless Steel keypad with illuminated buttons and a rugged housing.
The K99 Keypad offers the following:
Two independent output relays are available, both can timed or latching outputs.
Relay 1 is the default lock output relay operated viaprogrammed user codes (codes 1-19)
Relay 2 is an auxiliary relay which can be configured asan additional output operated by a second set of user
codes (codes 20-99) or it can be used for a number of additional functions such as an alarm output or a Doorbell output.
User codes can be 4 to 8 digits (defined by the master code length), all codes must be the same length.
The Master access code for the keypad can be changed to suit installer requirements.

K99 Surface Keypad
Keypad Finish Brushed Stainless Steel
Housing Finish Zinc Alloy
Indication LED’s for Status, Lock, Auxilliary
Outputs Lock Output C, N/O, N/C Form C
Aux Output C, N/O, N/C Form C
Both rated 24V DC 3A Max
Tamper (alarm) output
Users 99 in 2 User Groups, 4-8 Digits
Programming Via Keypad and jumpers
Memory Non volatile
Connections Screw terminals
Dimensions 118mm H x 76mm W x 34mm D
Rating IP65
