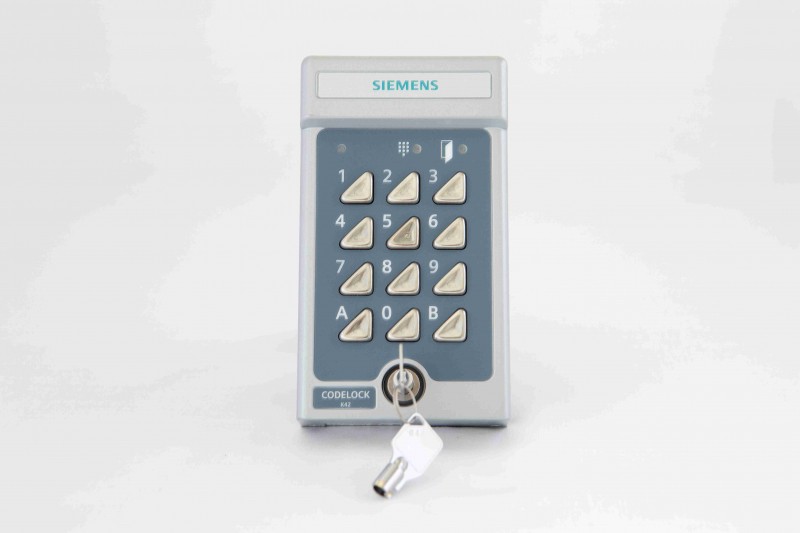

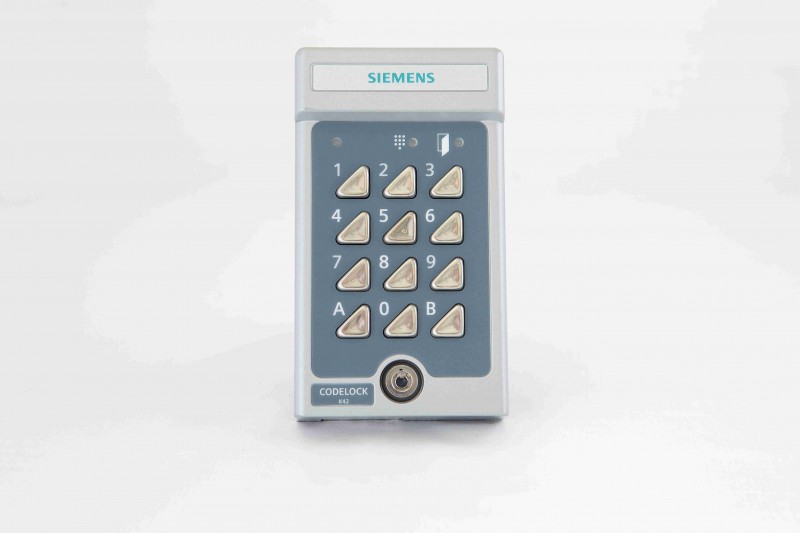

Formerly known as the Bewator K44 or Siemens K44 - Identical product

The V44 Duo Codelock is programmable for up to two doors - or when you need more than the two code capacity of the V42/K42. The V44Duo is also ideal for one door when you want more than two codes.

Two door capacity - this is useful, for example, in situations such as when one wants to use the same keypad to control access both through a garage door and the entrance door located next to the garage door. The doors can either have the same code or different codes - it is possible to set separate codes for each door or use the same code for both.

The V44 Duo has a total code capacity of 30 codes, (twenty 4-digit codes and ten 6-digit codes).

• Cast metal with stainless steel buttons and security lock. Blue colour.
• Indoor or outdoor use  with an IP54 rating (in very exposed locations, use SH2 or SH1 rain cover)
• Outputs: Two voltage-free relay contacts, max. 2 A, 28 VDC. Open collector for duress/alert. Open collector for door bell. Tamper switch for alarm connection (normally closed).
• Inputs: Two exit button requests with delay. Two separate for codes disable. Two for door contacts. External control of zero opening.
• Operating voltage: 10 to 35 VDC 8 to 24 VAC
• Current consumption: 75mA in standby
• Dimensions (W x H x D): 80 x 140 x 40 mm
