Description

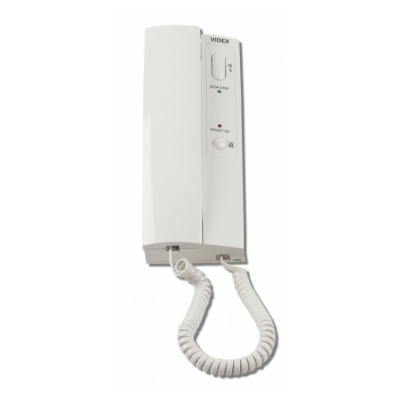

3000 Series handset for VX2200 system with large door open button, timed privacy button with LED and a door open LED. Features include a three position call volume control, a programmable timed privacy button with red LED to disable the phone at certain times (8 selectable privacy times from 15 minutes up to 16 hours or continuous, the privacy will automatically switch off when the time expires) and a green door open LED. Connects to the system bus via 2 wires with addional connects for a local door bell input and the door open LED.
It has an 8 way dipswitch for programming the address and a 3 way dip switch to program privacy time along. Can also be used a extension handset for 337xx monitors. Maximum of 3 devices per call button. Privacy of speech and lock is standard. Includes a push button timed mute switch to switch the phone off, a mute status LED (Red) and a door open LED (Green).
Material - White ABS plastic
No. Of cores to telephone - 3
Recommended cable type - CW1308
AC buzzer call tone - No
Electronic call tone - Yes
Call tone volume setting - Yes
Lock release button - Yes
Dry contact button - Yes
Privacy of speech between handsets - Yes
Slide mute switch - No
Push mute switch with on/off LED - Yes
Timed mute - Yes
Door open LED - Yes
