Description

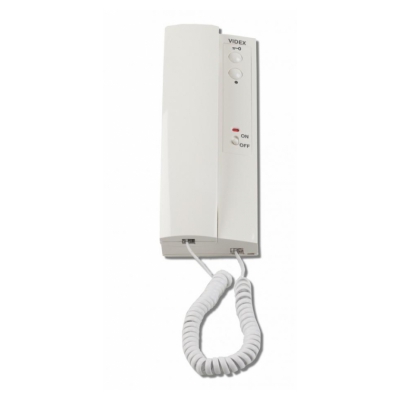

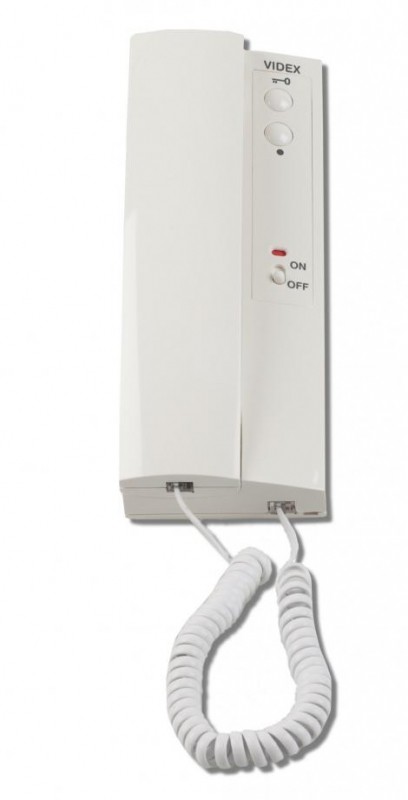

3000 Series 2 button handset with slide mute switch for VX2200 systems. Features include a lock release button, service button and three position call volume control. Connects to the system bus via 2 wires with addional connects for a local door bell input and alarm output which can be used to signal the concierge of an event in the apartment. The slide mute switch is used to disable calls to the apartment at certain times.
It has an 8 way dipswitch for programming and voltage free contacts for 2nd button. Can also be used a extension handset for 337xx monitors. Maximum of 3 devices per call button. Privacy of speech and lock is standard. Includes a slide mute switch to switch the phone off.

Material - White ABS plastic
No. Of cores to telephone - 2
Recommended cable type - CW1308
AC buzzer call tone - No
Electronic call tone - Yes
Call tone volume setting - Yes
Lock release button - Yes
Dry contact button - Yes
Privacy of speech between handsets - Yes
Slide mute switch - Yes
Push mute switch with on/off LED - No
Timed mute - No
Door open LED - No
System - VX2200
