Description

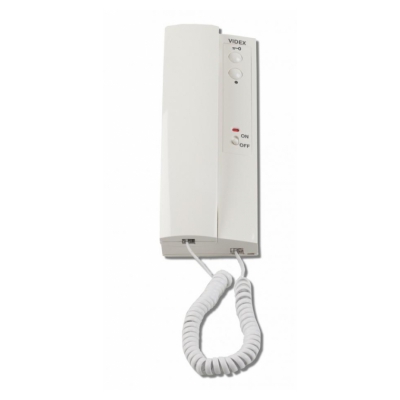

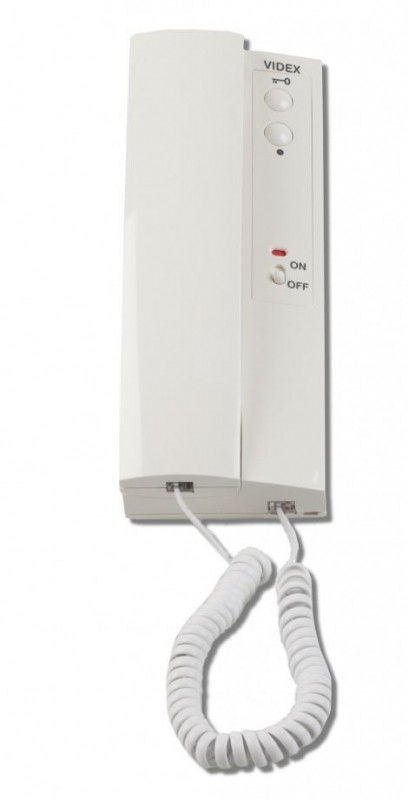

Low cost 3000 Series 2 button handset with slide mute switch for VX2200 system. Upto 255 of these telephones can be connected on the same bus but this handset can not be used on systems with a concierge or video systems.
It has an 8 way dipswitch for programming and voltage free contacts for 2nd button. Maximum of 3 devices per call button. These handsets do not work with isolated, video and multi level installations or with concierge. Includes a slide mute switch for do not disturb feature

Material - White ABS plastic
No. Of cores to telephone - 2
Recommended cable type - CW1308
AC buzzer call tone - No
Electronic call tone - Yes
Call tone volume setting - Yes
Lock release button - Yes
Dry contact button - Yes
Privacy of speech between handsets - Yes
Slide mute switch - Yes
Push mute switch with on/off LED - No
Timed mute - No
Door open LED - No
System - VX2200
