Classe 100 Hands Free Audio Kit with Internal Unit and Push Button Entrance Panel

Quickcode: 10182

Available

£376.10 (£451.32 inc VAT)

Quantity:

Shipping:

5-7 working days

Manufacturer: Bticino and Terraneo
Part number: 364232

You can place an order for this product, and typically, it will take 5-7 working days to be ready for dispatch.

Our sales team will provide you with a confirmed dispatch date shortly after receiving the order.

Product description

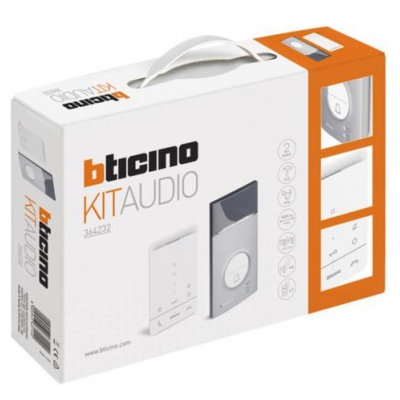

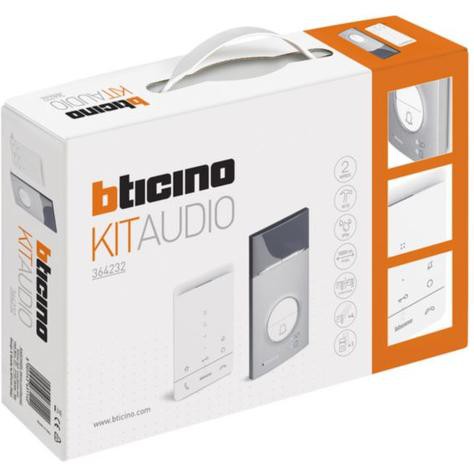

Classe 100 hands free audio kit
One way hands free kit with Classe 100A16E audio internal unit and LINEA 3000 push button entrance panel
Classe 100A16E audio internal unit: - 2 physical keys for the control of the main door entry functions - answer and end a call - 3 touch keys for the control of the main functions - door lock release, auxiliary relay control and entrance panel activation/scrolling - Further 4 configurable touch keys that perform different functions - e.g. intercom, additional door lock activation, generic activations, ringtone volume adjustment (with call exclusion) using the appropriate selector - Wall mounted using bracket (supplied) or table mounted using table support accessory (1 x Cat. No. 344692)
LINEA 3000 push button entrance panel: - Zamac front cover - White LED backlit nameplate - Can be flush or wall mounted - Can be fitted with rainshield (Cat. No. 343051) - Ingress protection rating of IP54 and a mechanical protection rating of IK10

Technical recommendations

Can be easily adapted to a two way system by purchasing an additional internal unit

Technical characteristics

With video	No
Number of indoor stations	1
Number of outdoor stations	1
Number of call buttons	2
Installation technique	Bus system
Mounting method indoor station	Surface mounted
Colour indoor station	White
Mounting method outdoor station	Surface mounted
Material outdoor station	Aluminium
Colour outdoor station	Grey
Expandable to max. number of indoor stations	2
Expandable to max. number of outdoor stations	16
Picture system	PAL
Overhear protected	No
Can be connected to smartphone	No
Internal communication	No
Hands free	Yes
With day/night function	Yes
Zoom, pan/tilt function	No
With memory function	No
Manual adjustable camera	No
Label space/information surface	Yes
Hearing aid compatible	Yes
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Width	102 mm
Height	155 mm
Depth	20 mm
Degree of impact strength (IK)	IK10
Degree of protection (IP)	IP30

Operating / setting temperature	5-45 °C
Storage temperature	-10-70 °C
Voltage type	DC
Nominal voltage	18-27 V
Supply current	0.0085-0.055 A
Frequency	0-0 Hz
Sound level	86 dB
Standby consumption	8.5 mA
Halogen free	No
Antimicrobial treatment	No
Cable nature for connection	Flexible or rigid
Cable section	0.1-2.5 mm²
Fitted with USB plug	No
Fitted with rainproof plate protection	No
With complemantary luminous signal	No
Mounting method	Supporting bracket
Control mode	Wired
Contains Batteries and/or Accumulator	No
Additional unit	Yes
Loudness setting	Yes
Addressable	Yes
Door entry system with mobile application	No
Number of ringtones	16
Remote opening of gate / Electric door opener	Yes
Screen resolution	Not applicable
Screen brightness setting	No
Screen contrast setting	No
Memory video function	No
Camera type	Not applicable
Max distance between internal and external unit	600 m
Communication rank type	Other
Connected object	No
