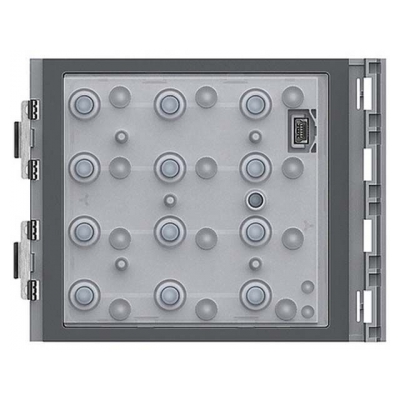

Bticino 353000 | Keypad Module For Sfera New Panels

This Sfera keypad module can be used to control access into the property and is fitted with relay contacts and clamps which are used for connection to the door lock release.

The code for opening the door can be programmed using the keypad module, or using a computer with the downloaded software.

The module features visual notification of the access status and can be connected to other modules using the multi-cable supplied. The device may also be used as a stand alone unit with an independent power supply.

Features:

• Access control status indicators
• Night backlighting LEDs
• Numeric keypad

Technical Specifications:

• Power supply from SCS BUS: 18 - 27 V DC
• Stand by absorption (with backlighting LEDs off): 10 mA
• Stand by absorption (with backlighting LEDs on): 25 mA
• Maximum operating absorption: 45 mA
• Operating temperature: -25 to +70 degrees C
• Protection index (panel assembled): IP 54

Dimensions:

• 91 x 115 (hw mm)
