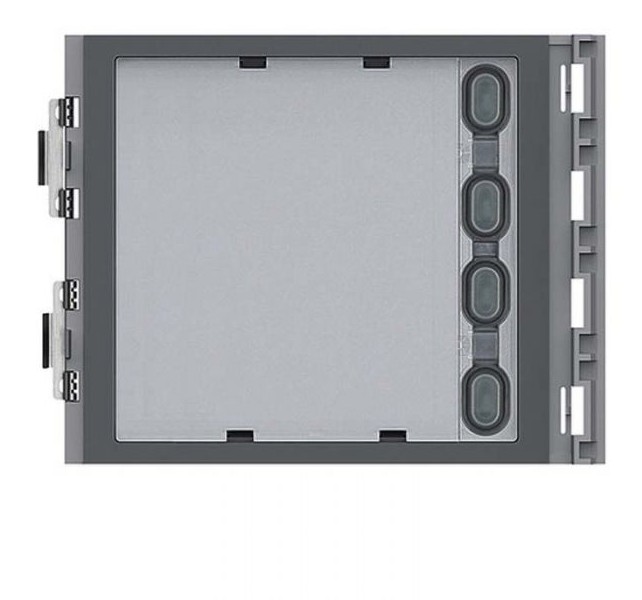

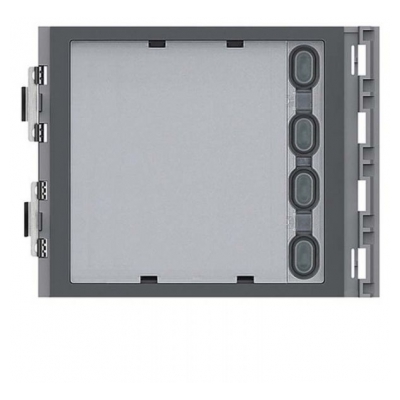

Bticino 352000 | 4 Way Single Column Button Module For Sfera Panels

This four push-button module is designed for use with the Sfera New and Sfera Robur range of entrance panels.

The module is to be used with the designated audio or video module which is connected to each other using the supplied multi cable.

It also provides the back-lighting of nameplates for low lighting conditions.

Please note: The device must not be configured.

Features:

• Backlit nameplates
• Ideal for low light conditions

Technical Specifciations:

• Power supply from SCS BUS: 18 - 27 V DC
• Stand by absorption with backlighting LEDs off: 1 mA
• Stand by absorption with backlighting LEDs on: 7 mA
• Maximum operating absorption: 7 mA
• Operating temperature: -25 to +70 degrees C
• Protection index (pushbutton panel assembled): IP 54

Dimensions:

• 91 x 115 (hw mm)
