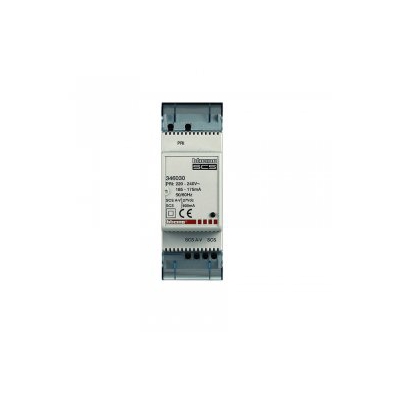

This power supply is double insulated for additional protection in accordance to the certified electrical inspector (CEI). The device is used to supply power to video door entry systems and mini sound systems. It is enclosed by a two DIN module plastic rail enclosure annd the device must not be configured.

Please note:The SCS-AV and SCS outputs can be used at the same time in respect to the maximum current absorption of 600 mA

Features

• Two DIN module device
• Status notification LEDs
• 230 V AC input connection clamps 50-60 Hz

Technical Data

• PRI AC power supply input
• Rated voltage: 220 - 240 Vac
• Rated current: 200 - 190 mA
• Working voltage range: 187 - 265 V
• Working frequency range: 47 - 63 Hz
• Input power at full load: 21.5 W maximum
• Dissipated power: 5.3 W maximum
• Performance at full load: 80%
• Power in stand by: < 1 W
• Operating temperature: 5 to +40 degrees C
• Integrated fuse (PRI side): F1 T2A 250V


• SCS A-V: SCS:
• Rated voltage: 27 V +/- 100 mV
• Rated current: 0 - 0.6 A
• Rated power: 16.2 W
