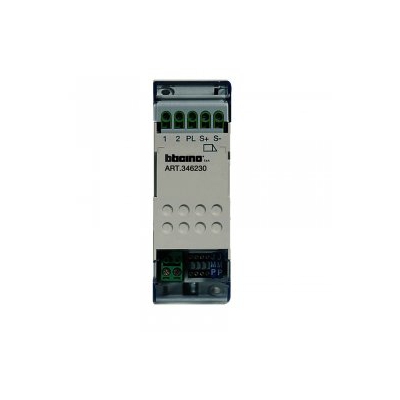

Bticino - Remote Secure Door Lock Relay for the Activation of an Electrical lock

This device is used for the activation of an electrical lock without needing a local transformer. The device must be setup using physical configurators and it can be set to trigger based on a timer of up to seven seconds. It can also be triggered using a dedicated key on the handset, plus it enables the use of the 'lock status' function when a CISA ELETTRIKA door lock is used. The door lock relay actuator is housed in a two DIN module housing.

Technical Data

• Power supply from SCS BUS: 18 - 27 V DC
• Stand by absorption: 10 mA
• Maximum operating absorption: 300 mA
• Operating temperature: 5 to +40 degrees C
• Contact load (PL/S+): 6 A - 24 Vac max
