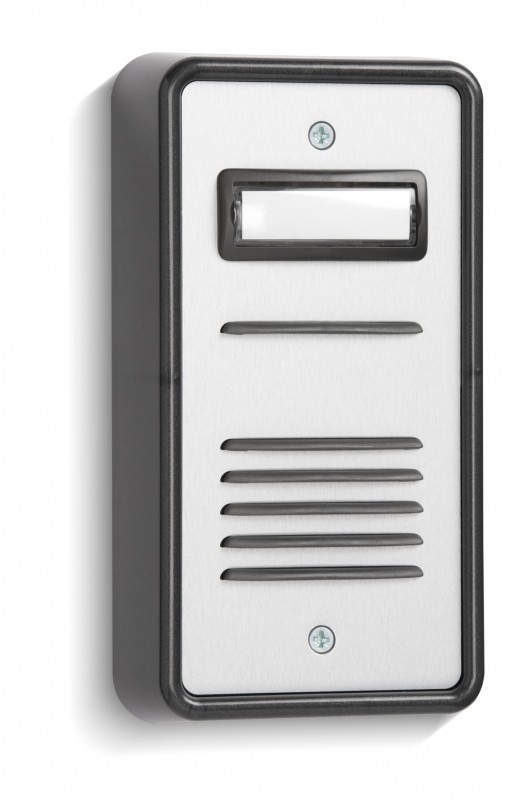

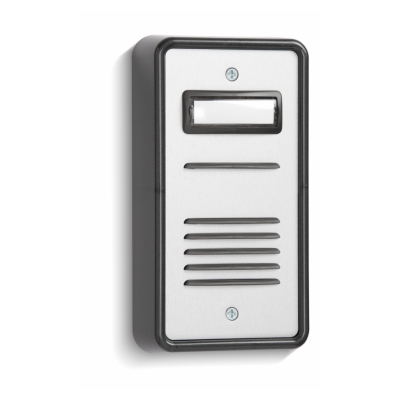

NB THE PICTURE SHOWS A ONE BUTTON PANEL IF YOU ORDER THIS ITEM A 8 BUTTON PANEL WILL BE SUPPLIED

PLEASE NOTE THIS IS SUPPLY OF THE PANEL ONLY, IF YOU REQUIRE THE SPEAKER/AMPLIFIER OR POWER SUPPLY YOU NEED TO ORDER SEPARATELY

The SPA panels are supplied in the model 900 series door entry systems and are a popular choice due to their high durability, resistance to corrosion and low cost.

These panels offer a contemporary and attractive style. The panels up to 10 buttons are manufactured from a 3 mm brushed anodised aluminum with an integral grill that protects the speech unit and complements the surface back box. The grill has fixings on the rear to firmly secure the speech unit.

As standard, the panels are supplied with a low-profile surface-mounting box moulded in black to complement the push-buttons. Alternatively, the panels can be supplied witha flush fitting zintec back box and vandal resistant bolts.

A single push button with integral nameplate is provided for each station including an optional Tradesman's button. This push-button has a versatile design whereby pressure from any part of the nameplate will initiate a call. The nameplate can easily be removed from the front for replacement or amendment of the name or number on the paper insert (included with each button).

Surface Panel Backbox H488mm W100mm x D43mm

Order a model SPA n, where n is the number of push-buttons required e.g. a 9 button unit would be a model SPA9.

(Please include an extra push-button should a Tradesmen/Services button be required).
