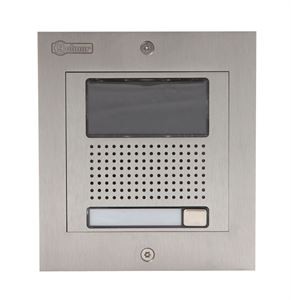

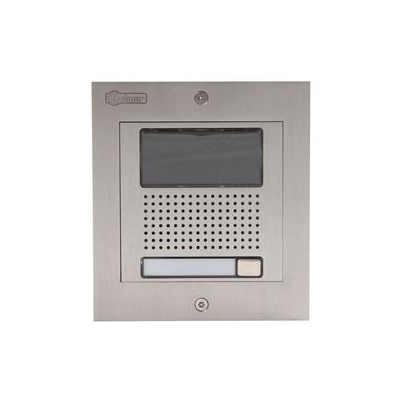

This kit has a 3mm thick ANSI stainless steel door panel. The panel has had applied a treatment to avoid fingerprint spots. The kit comes as standard with a flush mounting panel/backbox.

Kit features : Wall frame where electronic modules are to be inserted. Information window manufactured in polycarbonate. Steady illumination at the door panel through white LED’s.
It has an electronic call to the handset.
It is possible to have an additional handset being called from the same call button but these need to be purchased separately.
There is no lock release supplied in the kit.

The kit is designed to be used with a 12V a.c. lock release. Lock release not supplied.

The one way kit comprises:
1 x NX1110 one button audio grille module
1 x NX6001 assembling set
1 x EL655 single door audio module 4+n installation
1 x CE610 flush backbox
1 x T-500 telephone with electronic call
1 x TF-104 transformer

1 way flush kit dimensions:
external panel :135mm x 155mm
backbox: 125mm x 140mm x 56mm

For surface mounting kits:
You will require a surface mounting backbox with integral rain-shield part number N871/Inox or request the surface mount option and the appropriate surface backbox will be included.

You can add a rain shield to a flush mounting unit for some extra weather protection. Please order N711/Inox
