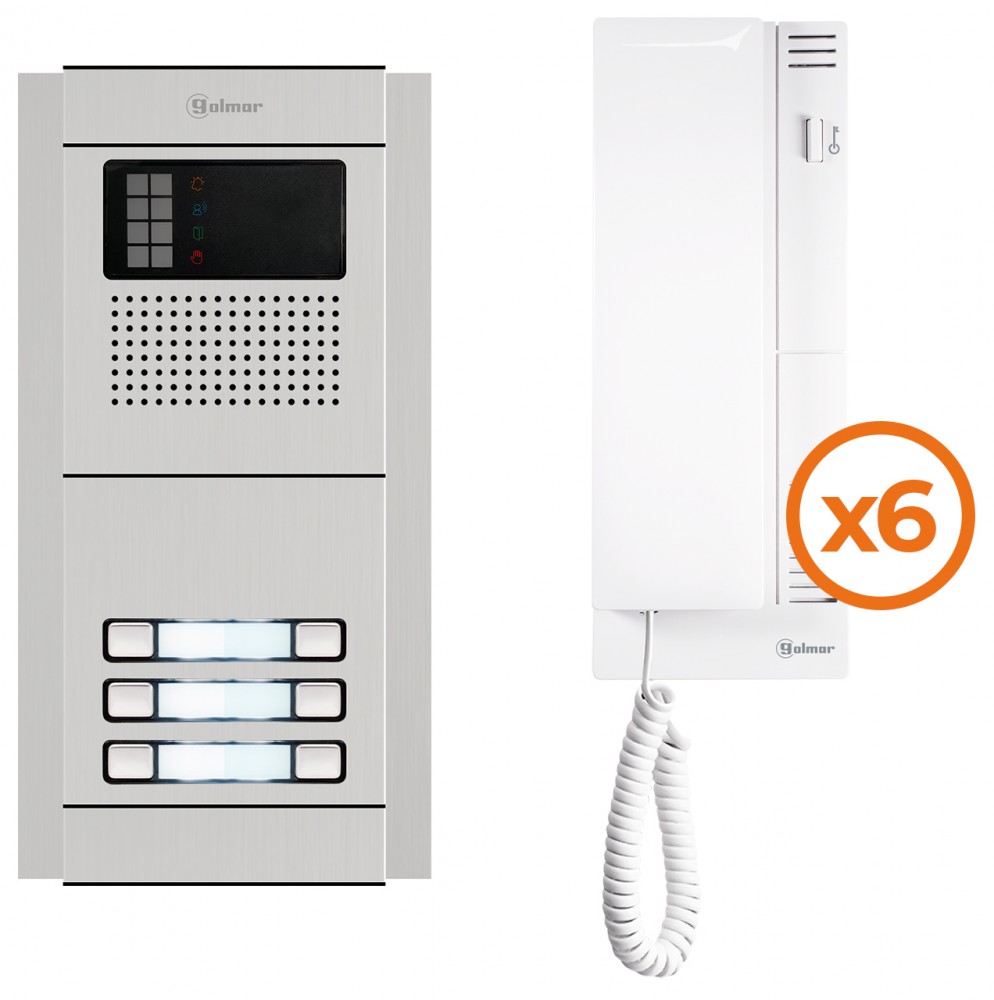

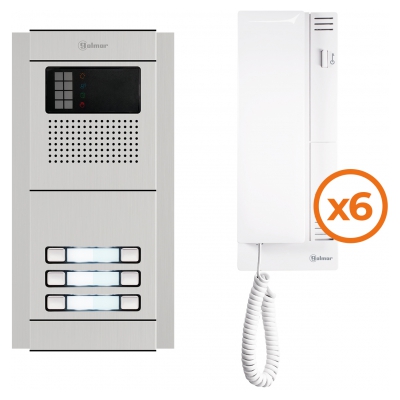

ON THIS KIT THERE ARE 3 ROWS OF DOUBLE BUTTONS TO MAKE THE 6

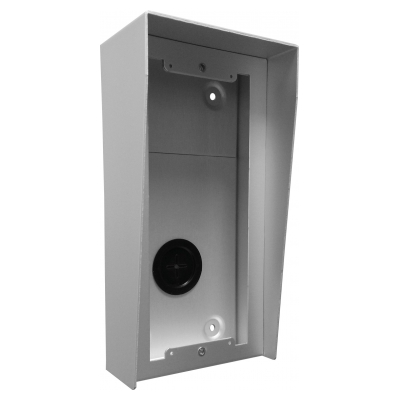

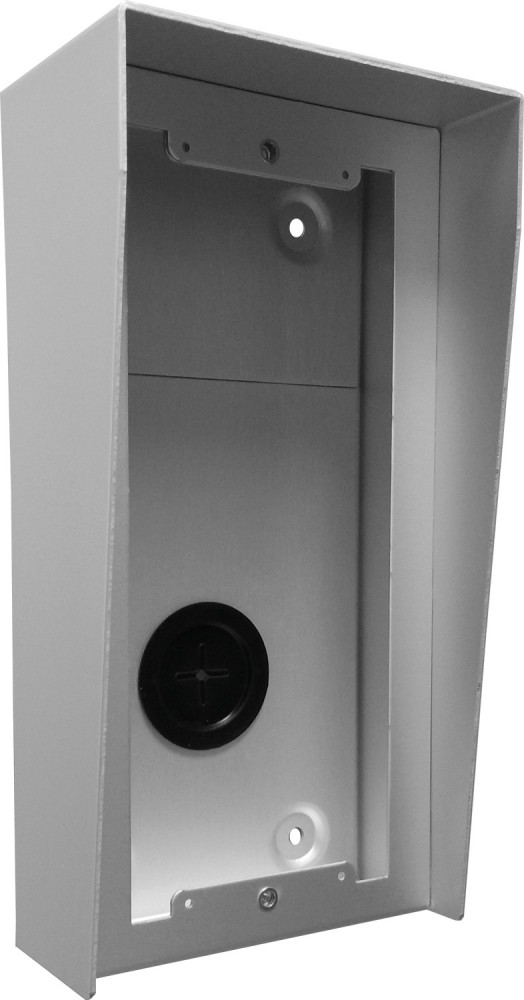

This kit has a 1.8mm extruded aluminum door panel. The kit comes as standard with a flush mounting panel and backbox. To surface mount please order 1 x N872/AL surface mount box with integral rainshield.

The panel has a wall frame where electronic modules are to be inserted. Information window manufactured in polycarbonate. Steady illumination at the door panel through white LED’s.
It has an electronic call to the handset.
It is possible to have an additional handset being called from the same call button but these need to be purchased separately. Order T-500 handsets

The kit is designed to be used with a 12V a.c. lock release. Lock release not supplied.



The six way kit comprises:
1 x N1000/AL audio grille module

1 X N3260/AL 6 button module

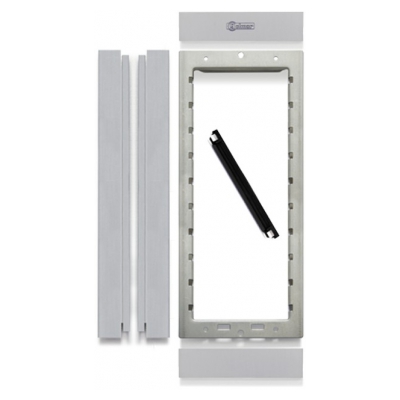

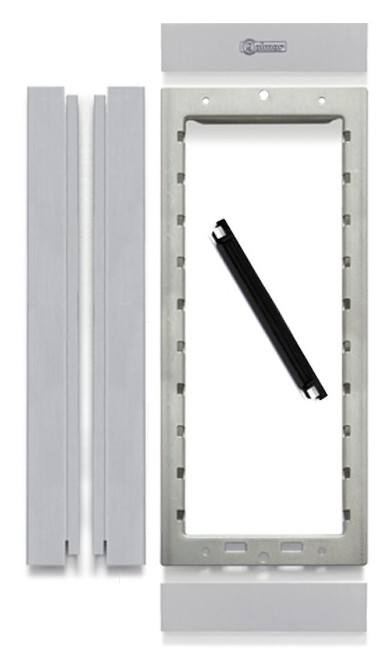

1 x N6002/AL assembling set
1 x EL655single door audio module 4+n installation

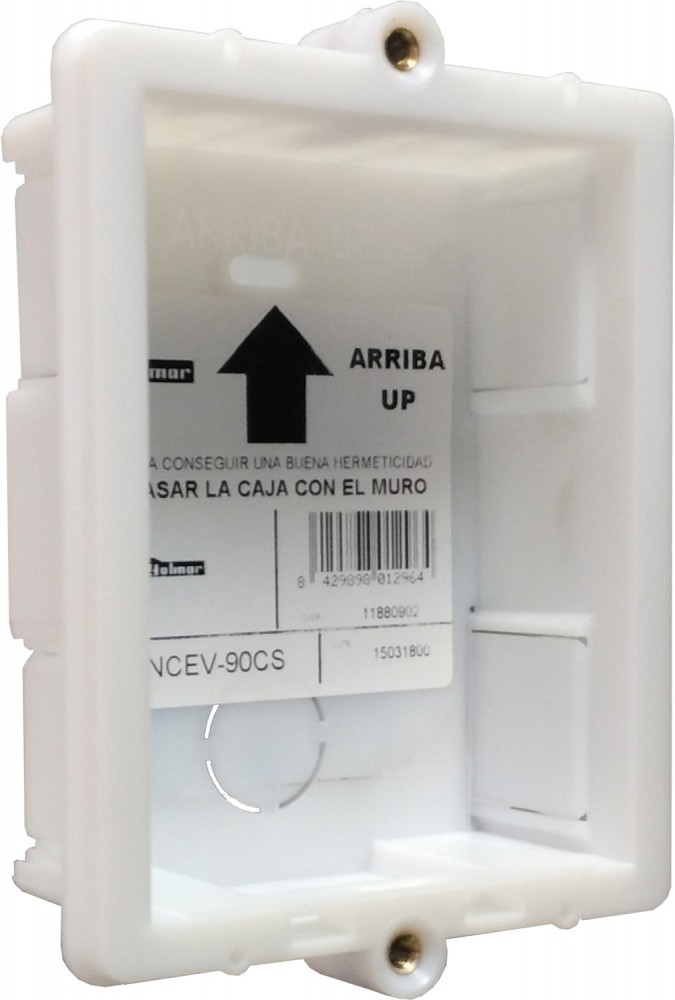

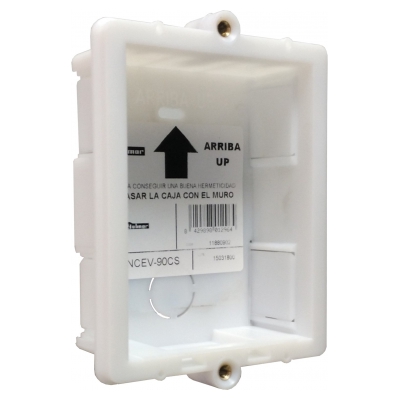

1 x NCEV-90C  flush backbox

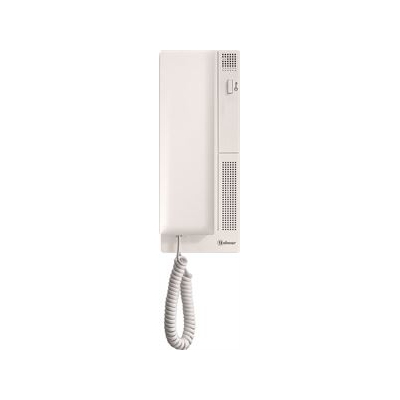

6 x T-500 telephone with electronic call

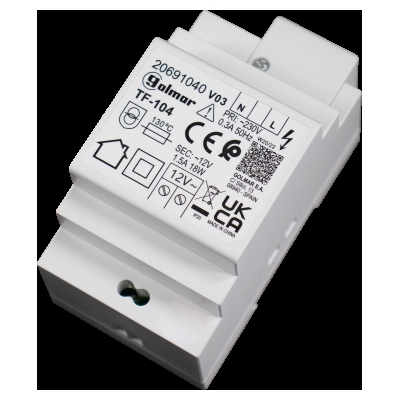

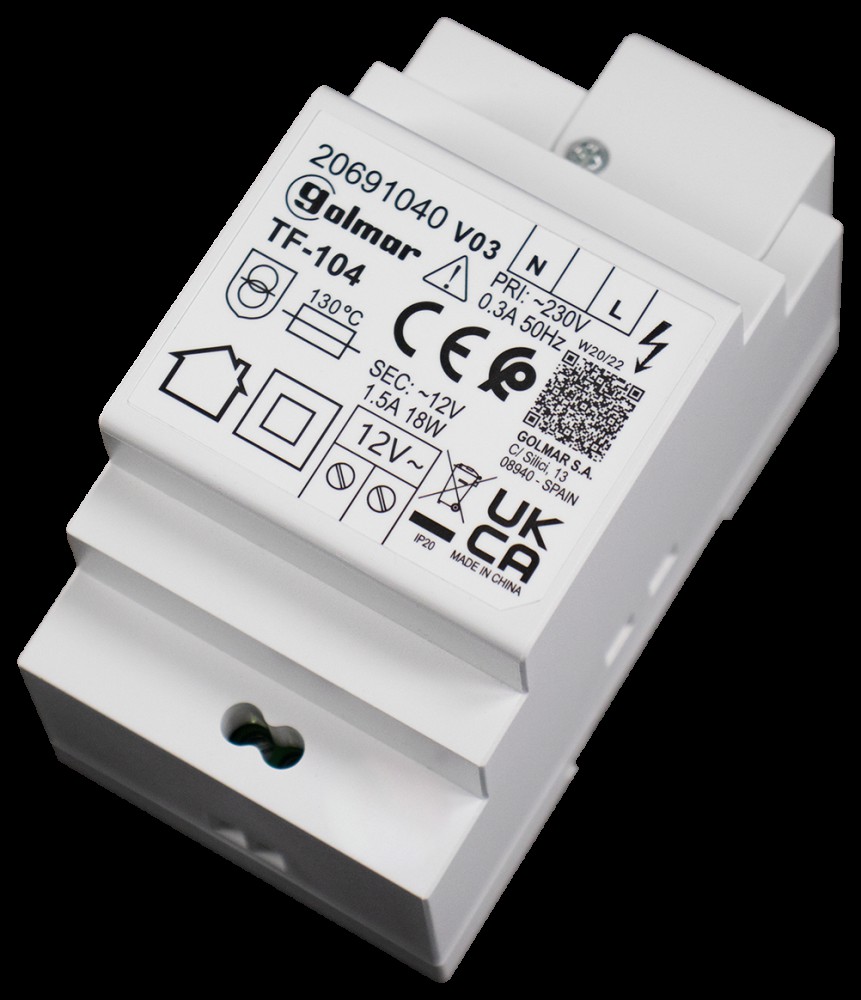

1 x TF-104 transformer



6 way flush  kit dimensions:
external panel: 134mm x 258mm
backbox: 99mm x 238mm x 56mm
