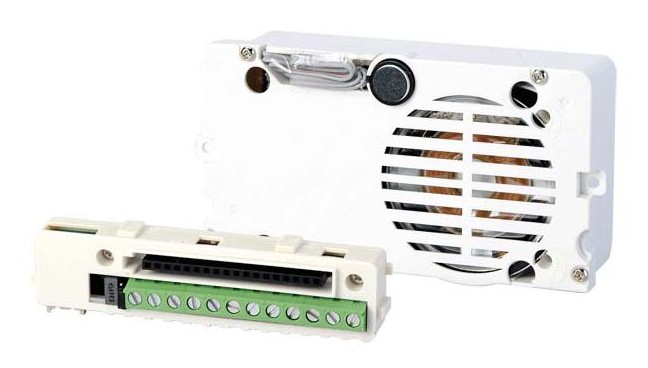

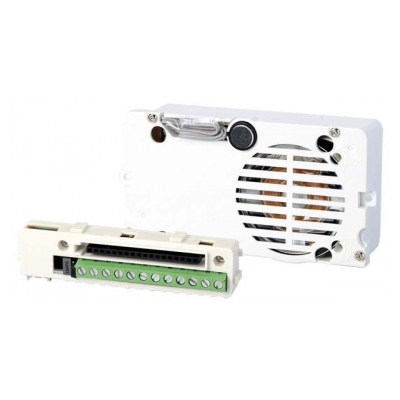

Comelit 1622 | IKall Audio Speaker Unit Simplebus

This audio speech module is compatible with Simplebus and it comes complete with terminal block and digital audio management system with Eco-cancelling. The watertight loudspeaker and electret microphone volume can be adjusted from the front.

This module is also fitted with an on-board electric lock release function and door open indication.

For quicker and easier installation this unit comes with a microprocessor and DIP switch with eight positions for programming calls to users.

Features:

• Compatible with all SBTOP functions and product
• Timed lock-release input and door open indication
• Adjustable volume control

Technical Specifications:

• Power supply: 33 V DC
• Operating temperature range: -25 to +55 degrees C
• Lock release: (3A), plus C, NC, NO 10A relay contacts
• Maximum current absorption: 200 mA

Dimensions:

• 55 x 104 x 38 (hwd mm)
