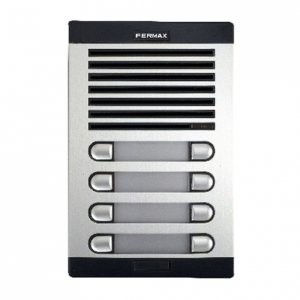

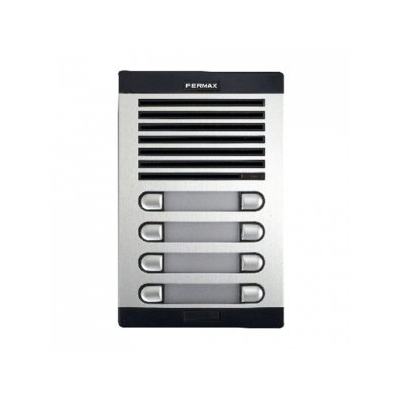

8 way City Classic door entry panel



Please note:- This is the new model number, the previous number was 8305



The Fermax curved profile panel is manufactured from anodized aluminium making it highly resistant to rough weather and climate changes. A cellular rubber airtight seal included insures a perfect panel to wall fit to prevent water infiltration.

The chrome plated pushbuttons includes a card slot to insert a label with the home owner's name and door number. When the call button is pressed, a soft light lets you see the card slots, even in low light conditions.

The entry panel uses a conventional system using 4 wires common to the whole installation plus 1 call wire (or call return) per home.

Features:

• Two-way volume control
• Flush mount box included

Technical Data:

• Complete with amplifier module
• Traditional 4+N wiring type
• Panel dimensions: 199 (H) x 130 (W) mm
• Flush-fit box dimensions: 185 (H) x 115 (W) x 45 (D) mm
• Surface mounted box dimensions: 199 (H) x 130 (W) x 33 (D) mm
• Power supply: 12V AC
• Consumption: in standby 100 mA, active audio 200 mA and lighting per lamp 70 mA
• Operating temperature: -10 to 60 degrees
