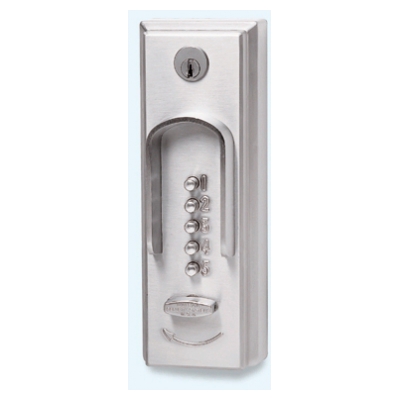

The 2015 Series lock is a fully mechanical pushbutton access control with no electrical wiring, electronics, or batteries. This lock is designed to operate surface mounted exit devices (not supplied) from the outside using a tailpiece, replacing the key cylinder on new or existing devices. Any standard pull can be mounted with the 2015 Series. Exterior access is by combination. Egress is by interior exit device and is free at all times.

The lock can be used with many leading brands of surface-mounted (rim-mounted) exit devices; however, the 2015 Series cannot be used with surface-mounted exit devices with counterclockwise rotating hubs or with thumb-operated, mortise design, or most vertical rod exit devices. The exit device can be “dogged” open without affecting the operation of the lock. Designed for high-frequency use and indoor or outdoor applications.

• Highly Weather Resistant
• All Metal Cast Front Housing
• Non Handed ~ Clockwise (to 90°) tailpiece rotation
• 76mm (3") Minimum stile required
• 35 to 64mm (1 3/8" to 2 ½ ") Door Thickness
• Optional 102mm (4") Door Thickness
• Satin Chrome finish
• Simple On Door Code Change
