Securasound Ltd

Video System. G2+  - 2 wire technology

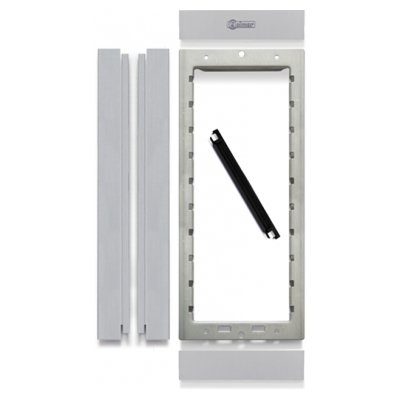

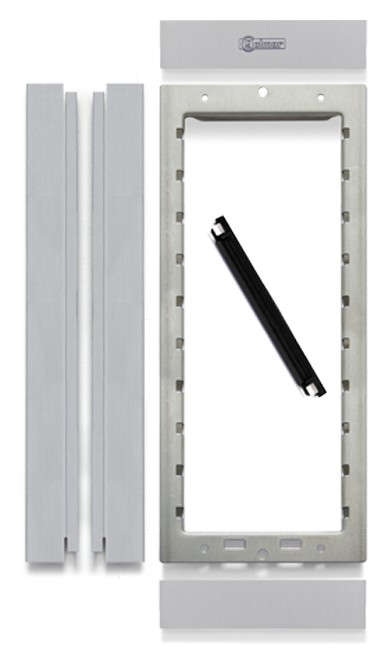

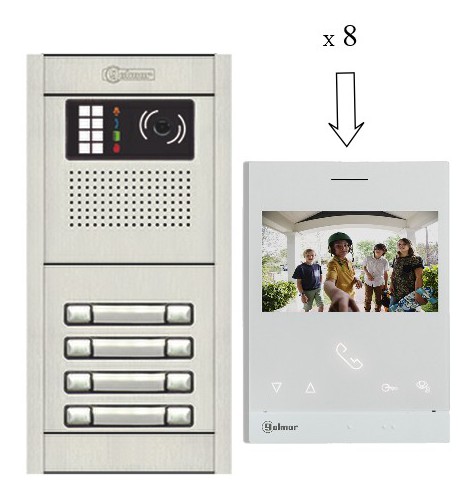

Nexa panel, flush mount with Art4Lite monitors

Video system: comprised of

• Nexa Aluminium panel flush mount

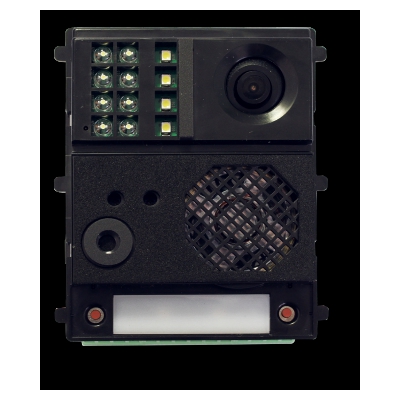

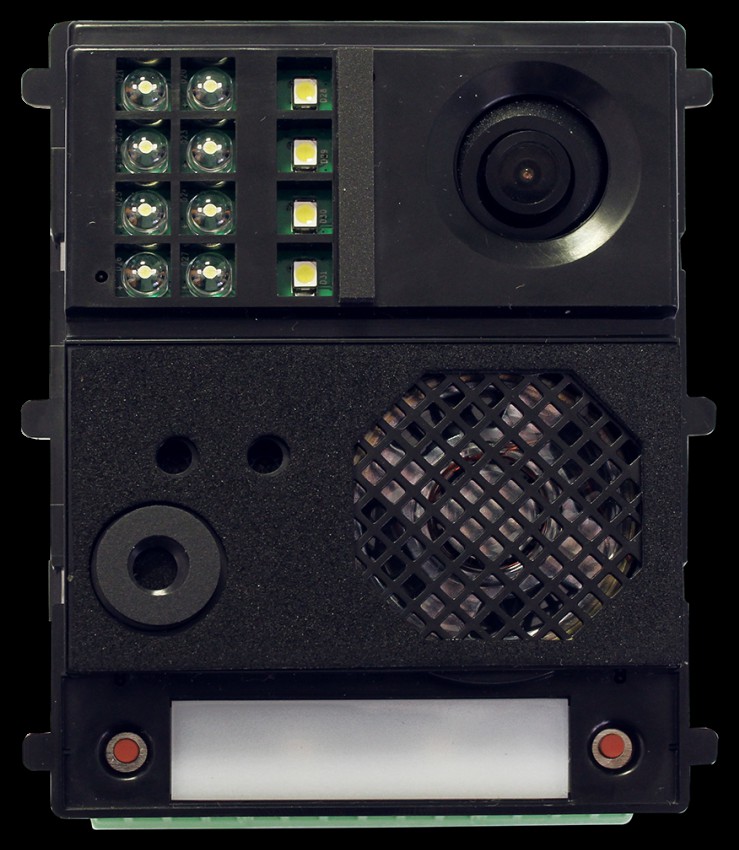

• EL632 G2+ camera and sound module
• FA-G2+ power supply
• Art4Lite/G2+.  4.3” hands free colour monitors and bracket – surface mount

Use 12V d.c. lock release (does not include lock release).

Recommended lock release: CV-24P/UNI

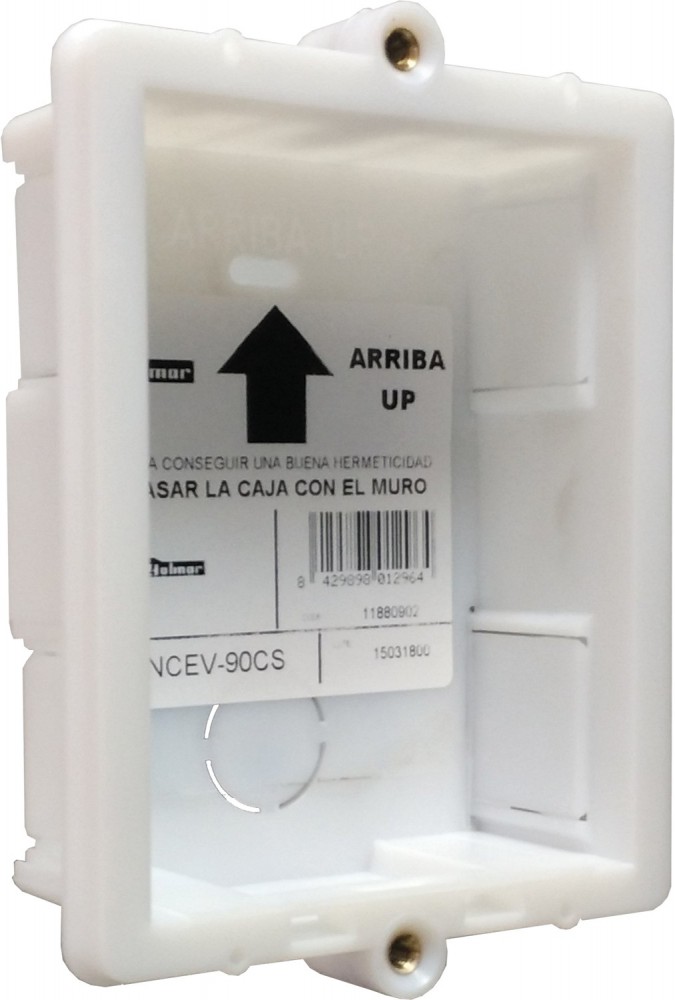

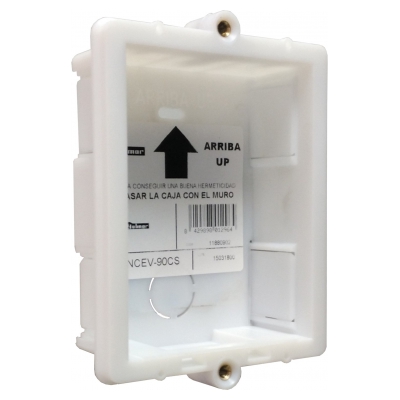

Surface mount boxes for the panels are available.

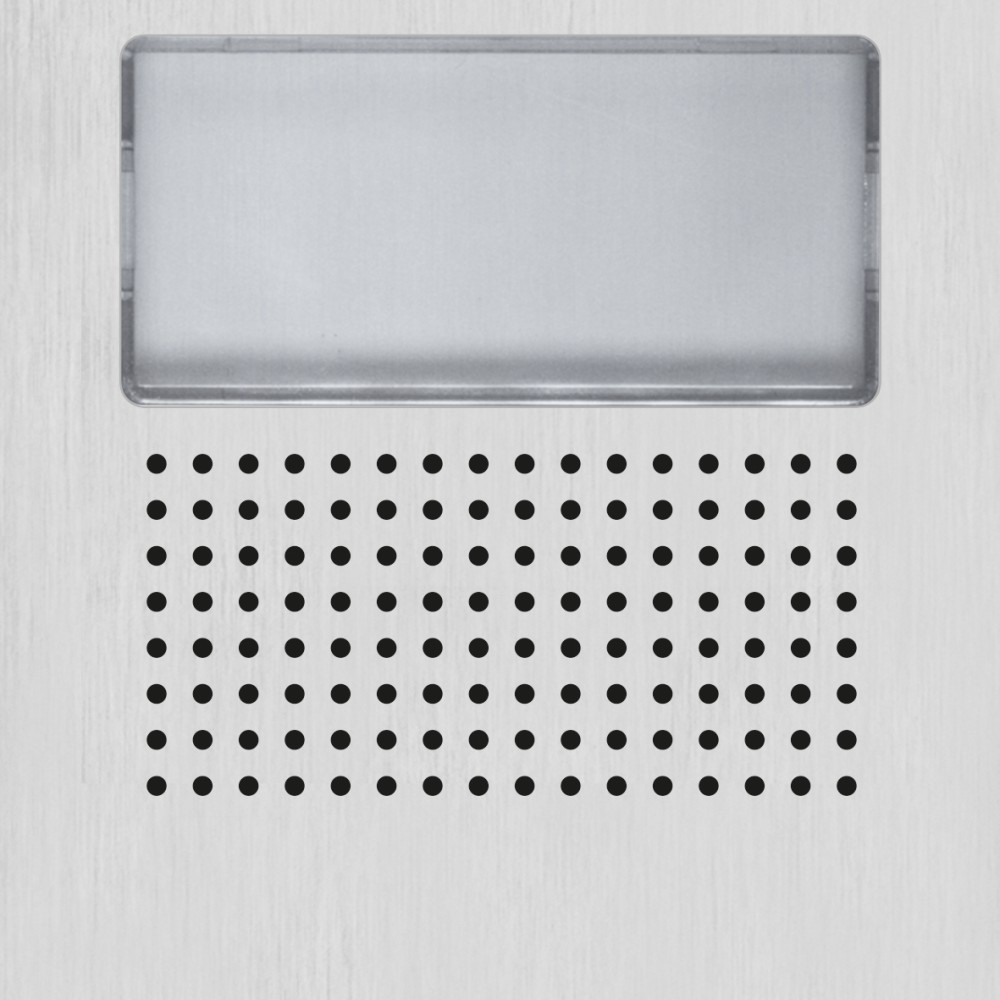

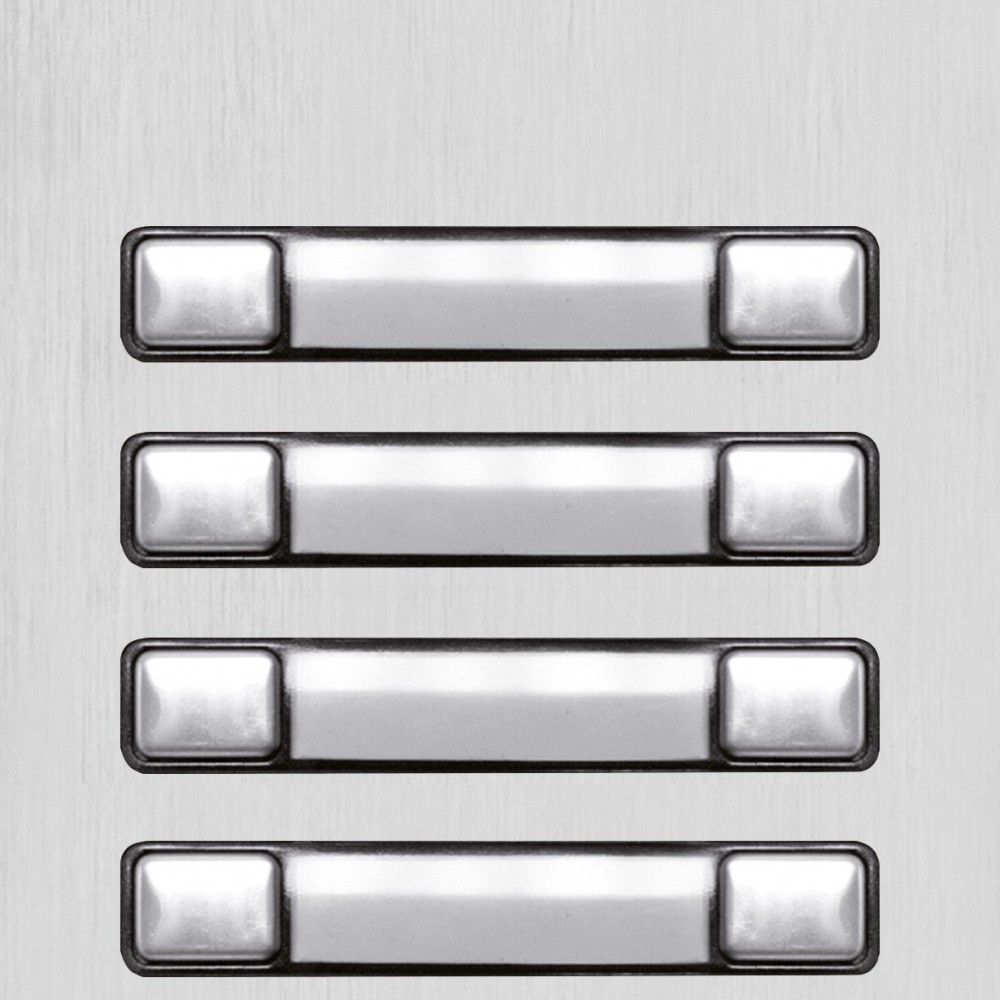

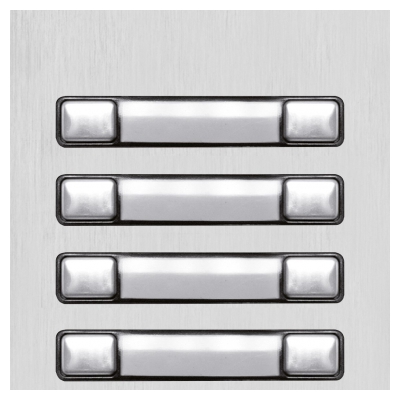

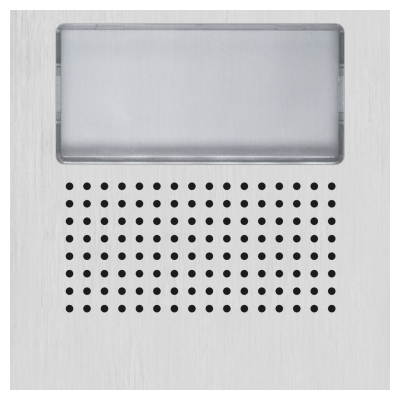

Nexa Aluminium Door Panel:

• Anodized extruded aluminium door panel.
• Wide-angle 120º orientable telecamera.
• Intensity controlled light emitters through video signal processing.
• Message broadcasting & coloured icons acknowledge the system status (call in progress, in communication, lock is activated or the system is busy).
• Privacy on audio, video & door open progresses.
• Two relay outputs for lock & gate activation.

Dimensions will vary depending on the size of the panel/system. i.e. number of call buttons

ART4Lite G2+ monitor

• Hands-free monitor for surface installation.
• 4.3" screen with capacitive navigation buttons.
• High efficiency loudspeakers.
• Audio communications, video & secret door opening.
• Video-spy functions, auto-start, doctor mode& do not disturb.
• Intercommunication with other units of the house selectively.
• Personalization of ring tones.
• Connection to the entrance door pushbutton, which saves the use of the doorbell.
• Output to auxiliary call repeater.
• Up to 4 monitors in a house without additional power.
