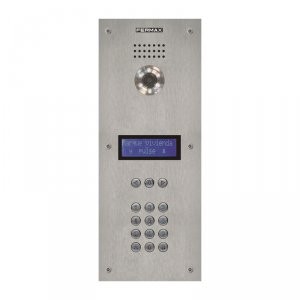

MARINE VIDEO PANEL VDS DIGITAL ST3

Installed in the accesses to the building, they enable communication with homes, door opening, guard unit call.

Incorporates COLOUR camera with built-in lighting and pan & tilt regulation system to adjust the camera lens.

Marine is the anti-vandal panel line manufactured in 2.5 mm thick stainless steel. Straight lines that highlight the quality of the steel. State of the art technology and resistance to even the most corrosive, humid atmospheres.

Panel colour is aluminium with dialling keypad and backlit LCD 2 line display having 16 characters each.

VDS system: Simplified installation audio and video door entry system that does not use house call wires. The call is made by transmission of a digital call code generated by the VDS amplifier.

Wiring for audio: 3-wire bus and video: UTP CAT5 / 5 wire / 3 wire + Coaxial (video).

Camera Specifications:-

• Image Output: 1.1Vp-p/75 ohms
• Resolution: 350TV Lines
• Pixels: PAL 500(H) x 582(V) 290Kp / NTSC 510(H) x 492(V) 250Kp
• Viewing angle: 90 degrees
• Light sensitivity: 0.1 Lux
• Pan & Tilt: 10 degrees

Technical Specification:-

• Panel measurements 150 x 360 mm (width-height)
• Flush-fit box dimensions: 130x340x55 mm (height-width-depth)
• Surface mounted box dimensions: 154x364x73 mm (height-width-depth)
• Power supply: 18 Vdc
• Consumptions- in standby: 100 mA, active audio: 200 mA and lighting per lamp: 70 mA
• Audio capacity home-outdoor panel: 2W
• Audio capacity outdoor panel-home: 0.15W
• Operating temperature: -10 to 60 degrees C

Opertion:-

• The house call is made by entering the corresponding code assigned to the home + the "bell" key.
• Electronic directory: lets you look for the names (home owners/residents) through the display and browser buttons.
• Access Control: incorporates access control functions through the numeric keypad by means of keypad codes (programmed previously).
• Two-way volume control
