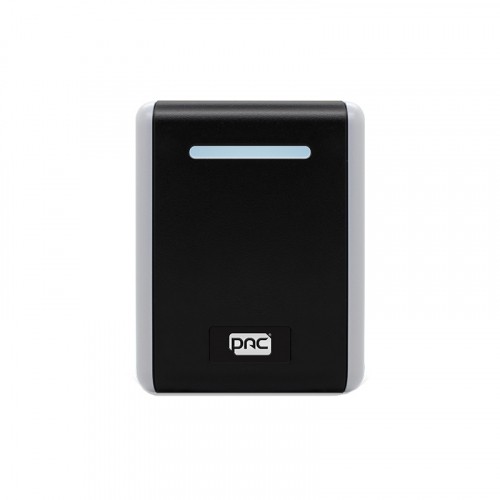

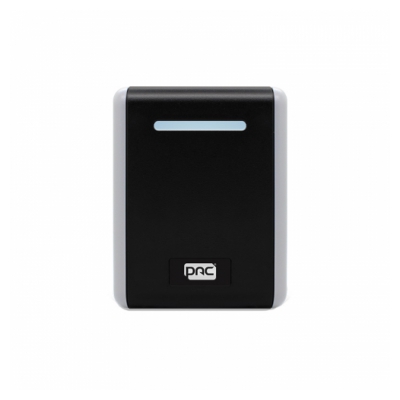

PAC GS3-LF (low frequency) Standard reader

The Oneprox GS3 Low Frequency (LF) readers from PAC are designed to provide a complete solution for new or existing access control applications. The full range of readers, including Mullion, Standard, Panel and Vandal, are supported by all PAC door controllers. In addition, the readers are Wiegand protocol compatible with all standard third-party controllers and panels.

• Flexible: Operates with most access controllers & modules that utilise a Wiegand protocol interface.
• Compatible: Emulation mode to mimic many popular Wiegand reader brands.
• Intruder graded: Meets the EN 50131- 1 & 3 for connecting to Intruder panels.
• Versatile: Simple on-site confi guration via the built-in feature switches, to defi ne supported card formats and both variable and fi xed output formats. No need for programming cards or specific readers.
• Audiovisual indication: The bi-colour LED (red/green) and audible sounder indicates valid/invalid card read, and tamper notifi cation.
• Easy to install: Installs within 3 minutes using simple and industry standard wiring. The Mullion and Standard readers use one screw to attach the reader to the mounting bracket.
• Confidence: Lifetime guarantee against electronic failure.

Key Features:

• Dimensions: 115(h) x 86(w) x 28(d) mm
• ID technology reads PAC, KeyPAC & Wiegand Prox
• Operating Voltage: 12v - 24v DC
• Recommended Cabling Type: 6 core 24 AWG alarm cable unscreened
• For standalone use, requires PAC Easikey controller
