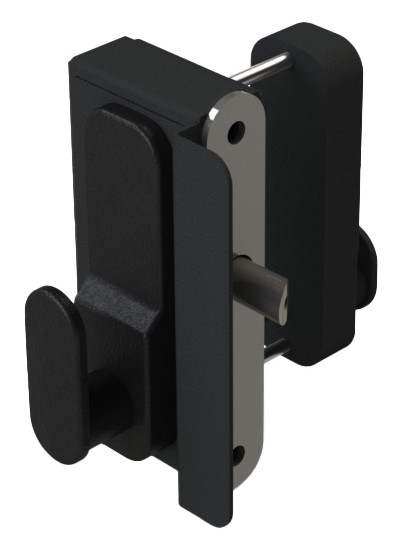

The Superlock BDGSW is a single-sided surface fixed digital gate lock made specifically for timber gates. It restricts outside access with a keypad, but allows you to exit the gate by just operating a rear lever handle on the inside. This lock auto-latches when you close the gate, but you can activate the hold-back function to allow the gate to remain unlocked while you

• Corrosion resistant – the keypad lock features marine grade keypads and powder-coated stainless steel casing
• No power needed – the mechanical keypad requires no power and can be installed anywhere
• Adjustable latchbolt – adjust the latchbolt in length for a precise fitting to your wooden gate
• Auto-latching – close the gate and the latchbolt latches into the gate frame. To open the gate – enter the code and turn the handle
• Hold-back function allows you to keep the gate unlocked when latched; activate with the switch on the rear handle
• Keypad on one side and rear lever handle – this  is also available with keypads on both sides.

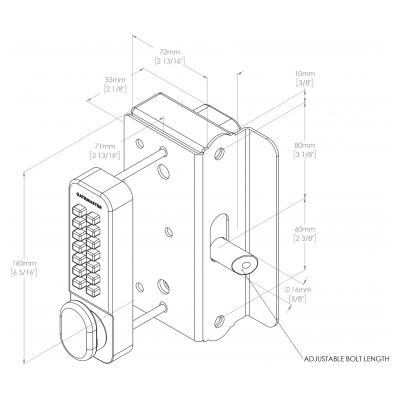

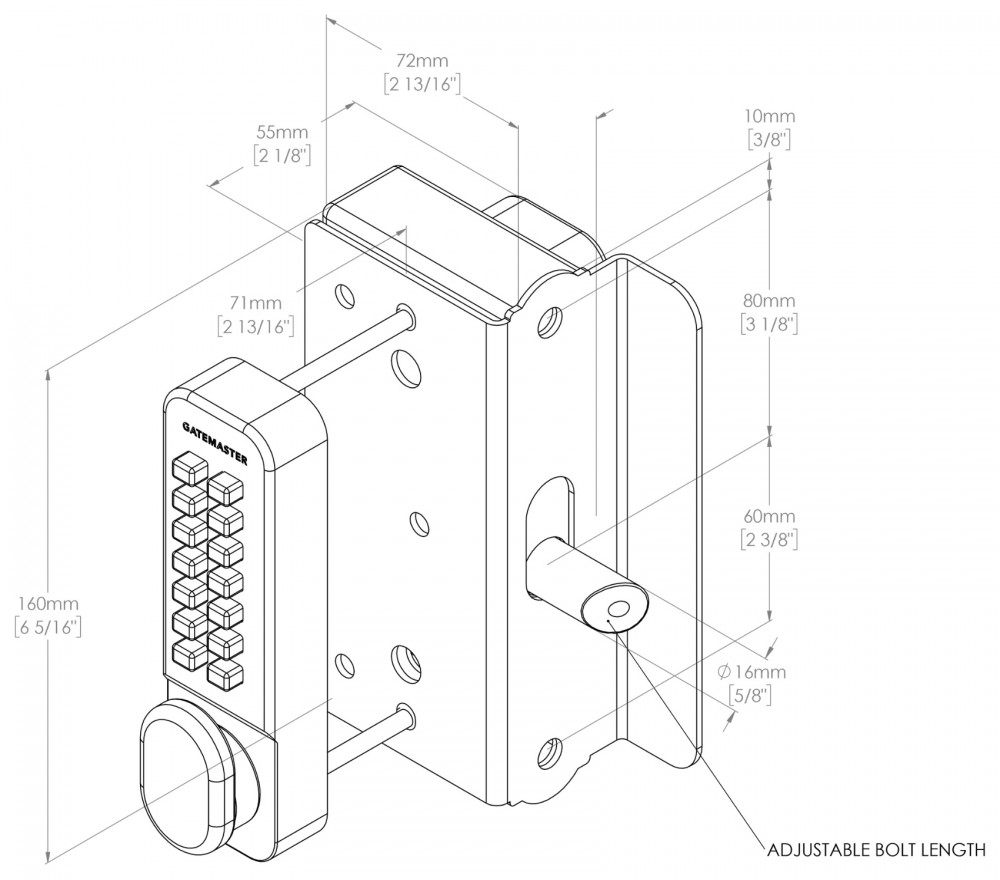

You can use the BDGSW on a minimum of 30mm thickness as standard, however you can use it on 20mm without the extenders. The maximum gate thickness is 75mm.

PRODUCT CODE

• BDGSWL – Left handed, keypad on one side, inward opening
• BDGSWR – Right handed, keypad on one side, inward opening
• BDGSWLO – Left handed, keypad on one side, outward opening
• BDGSWRO – Right handed, keypad on one side, outward opening

How to find the handing of your locks

If you are not sure of the handing, please send us an image of the Gate stood from the outside, with the Gate slightly open.
