CL2255 Electronic Tubular Mortice Latch

Quickcode: 6132

Available

£123.71 (£148.45 inc VAT)

Finish:

Latch Size:

Quantity:

Manufacturer: Codelocks
Part number: CL2255

Payment Methods

Description

You can place an order for this product, and typically, it will take to be ready for dispatch.

Our sales team will provide you with a confirmed dispatch date shortly after receiving the order.

The CL2000 Lock

The NEW CL2000 lock range are entry level electronic locks providing simple. effective access control. The NEW CL2000 has been designed to be easily fitted as a new install or as a rapid retrofit when upgrading from basic single code mechanical digital locks.

CL2000 Locks are ideal for a wide range of light duty entry control applications. Fully programmable on the door via the keypad with a multiple range of functions making them particularly suitable for use in health, education, commercial and residential environments.

Rapid Retrofit for basic single code mechanical codelocks
On door programming via Master Codes in seconds
Allows up to 80 User Codes
Allows up to 10 One-Time User Codes to be entered
Over 80,000 operations from 2 x 1.5 v AA
Locked • / unlocked •, LED indicator option
PVD weather resistant, low maintenance finish
Low battery warning
Connections for remote release by reception desk button, and alarm release included
Code Free entry mechanically by key or electronically from the keypad

RAPID RETROFIT

RETROFIT COMPLETE!

Technical Information

Door Thickness	35mm - 65mm
Door Material	Suitable for wooden doors
Batteries	2 x AA Cells (Supplied
Non Handed	Lock will fit door hung on the left or right
Finishes	PVD (Physical Vapour Deposition) hardwearing low maintenance finish SS (Stainless Steel) and PB (Polished Brass)

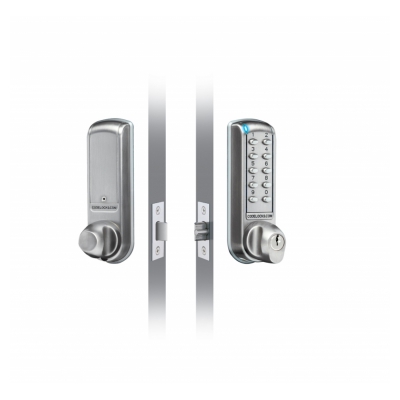

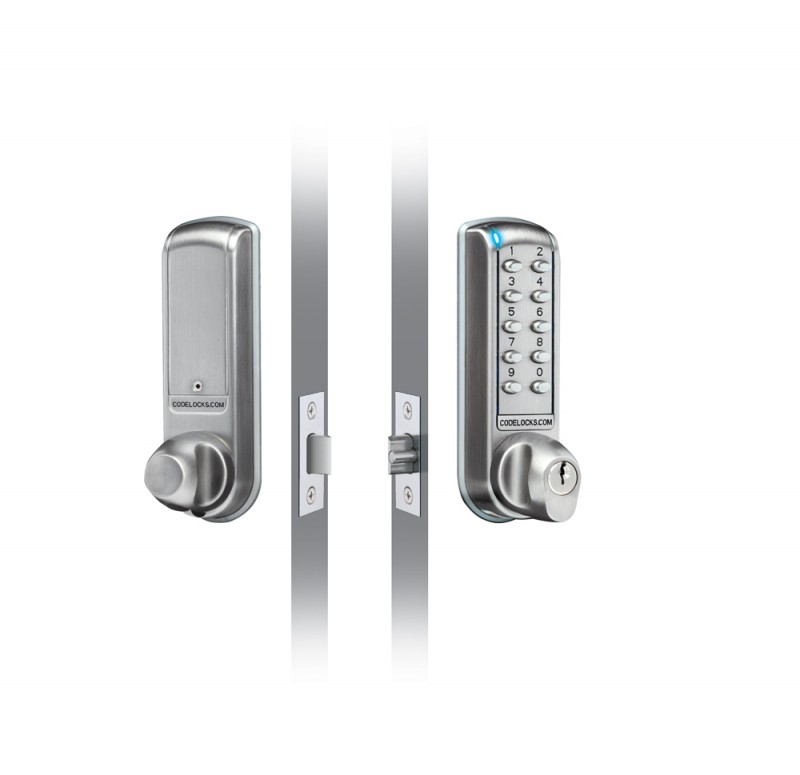

The CL2255 is a medium duty electronic lock

The outside knob turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights burn, the knob will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free Mode can also be programmed at the keypad using the Master Code.

Rapid Retrofit for basic single code mechanical codelocks
Tubular Mortice Latch
On door programming via Master Codes in seconds
Lever handle lock for doors hung on the left or right
Ideal for use in offices / schools / warehouses / hospitals / care homes nurseries / hotels / leisure facilities / the home

Available in 2 PVD finishes

Brushed Steel, Polished Brass

The lock can store up to 80 different User Codes. Codes may be 4, 5 or 6 digits long. Programming is via the keypad, using the Master Code.

The lock has fitted as standard two alarm release terminals.

REM1 is used to open the lock from a reception desk button or answer phone.
REM2 can be linked to an alarm system which, when activated by a momentary contact, will release the door for 30 minutes. This allows emergency personnel to enter the room to rapidly check that no one has been trapped and overlooked.
