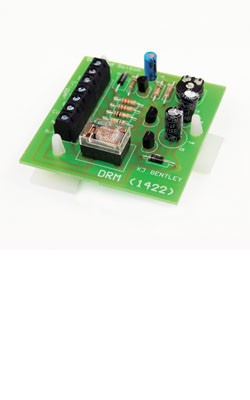

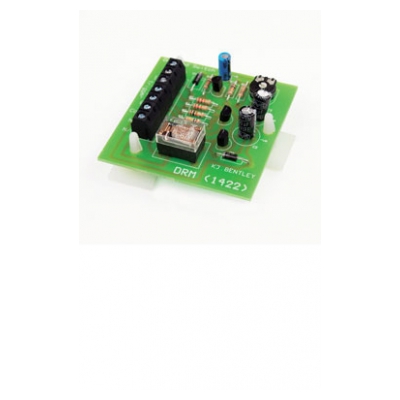

Delayed Release Module

Quickcode: 7296

 In Stock

£17.31 (£20.77 inc VAT)

3-4 working days

Part number: AT-065

Payment Methods

Payment Methods

The delayed release module was originally designed to allow an installer to “shunt” out a Passive Infrared detector on an exit route.


Function
As soon as the unit is triggered the relay energises for a preset time - time period 0 - 55 seconds.

Specification

Supply Voltage 8 - 16V DC
Trigger Voltage +ve or - ve 5 - 16V DC
Relay Contacts
Rated at
1 Amp @ 24V DC
0.5 Amp @ 100V AC
Temperature
Range
-25 to +50°C
Size 60mm x 60mm
