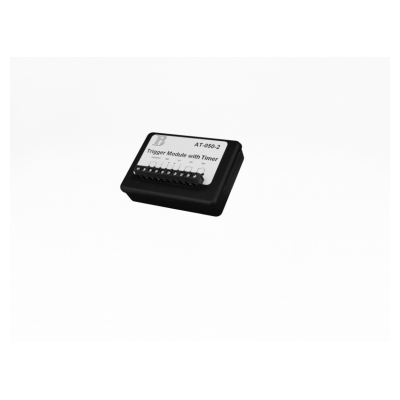

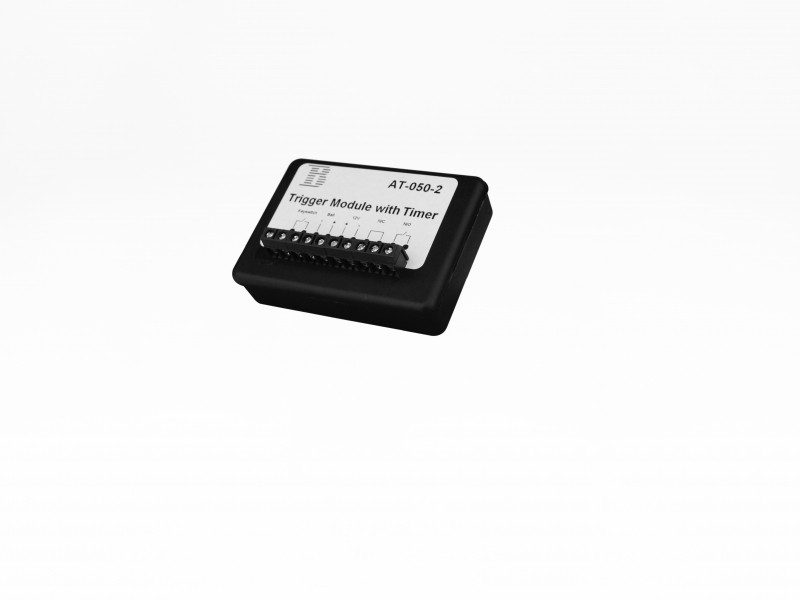

Trigger Module

Quickcode: 7286

 In Stock

£0.00 (£0.00 inc VAT)

3-4 working days

Part number: AT-050-2

Payment Methods

Payment Methods

This versatile unit has all the basic functions of a conventional control panel and can be battery operated. It's ideal for such things as:-

• Loop alarm
• Caravan alarm
• Simple shed alarm
• A very quick fix or temporary system
• Plus lots more


Features

• 12V operation
• Low quiescent current less than 1mA
• Long battery life
• Normally open loop
• Normally closed loop
• Terminals for key-switch
• Re-settable fused sounder output (1 Amp)
• Factory preset on-timer – set at 17 minutes
• Protected against reverse polarity connection
• Small size 51mm (2.0”) x 69 mm (2.7”)



Specification

Operating temperature -10°C to +65°C
Power requirements 10V to 15V D.C.

Quiescent current nominal at 15V and 23°C = 25uA

Quiescent current nominal at 15V and 65°C = 500uA
Normally open loop Less than 200 Ohms – guaranteed closed

Greater than 3k Ohms – guaranteed open
Normally closed loop Greater than 3k Ohms – guaranteed closed

Less than 200 Ohms – guaranteed open
Output switching 1.5 Amps at 23°C and 1 Amp
at 65°C
On timer after trigger 8 to 4096 seconds, set at factory – tolerance = ± 20%
